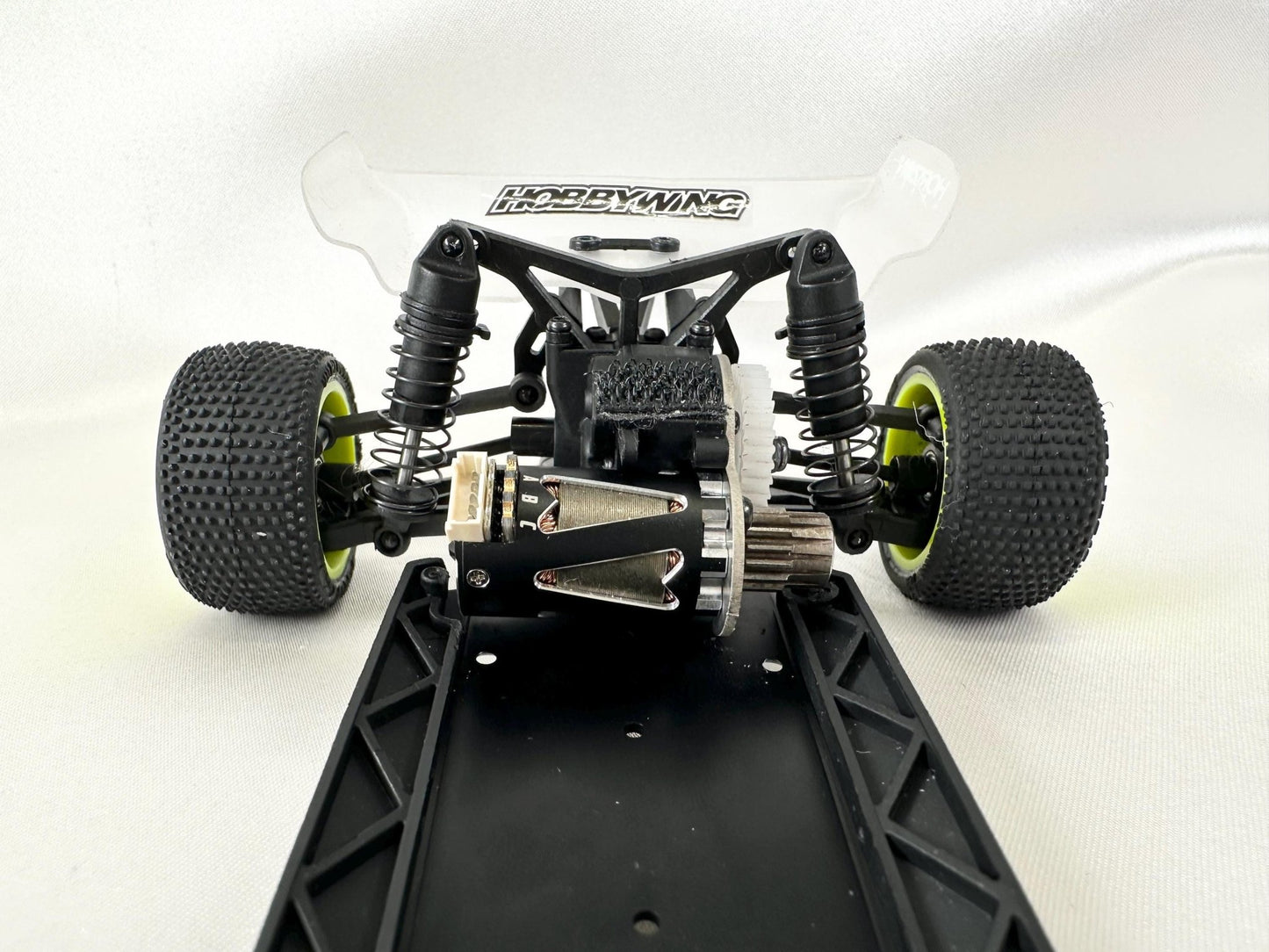

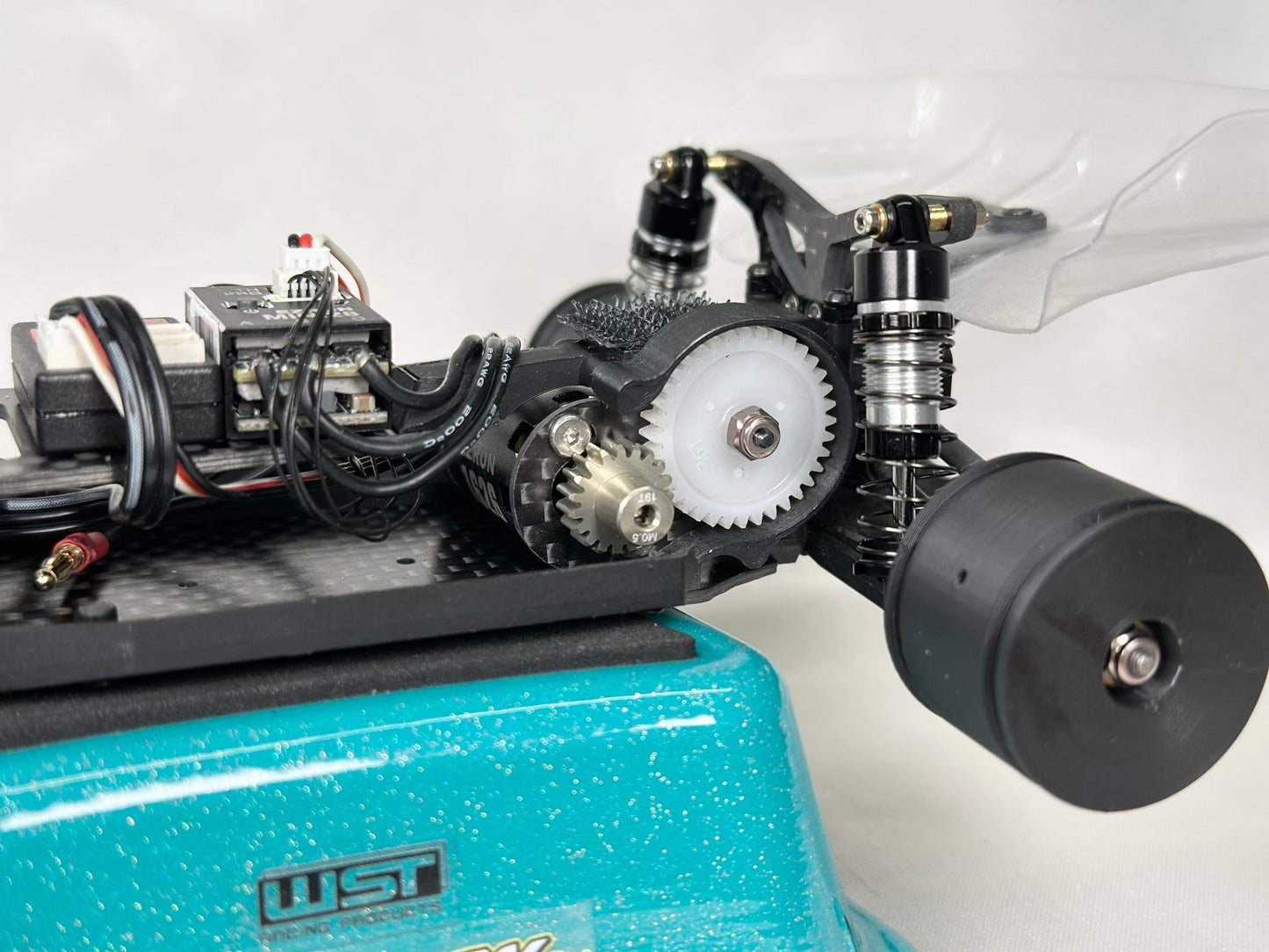

Micro-B Brushless Motor Plate - Carbon Fiber

This motor plate is a direct replacement for the factory motor mount in order to bolt up a brushless system to your Losi Micro B.

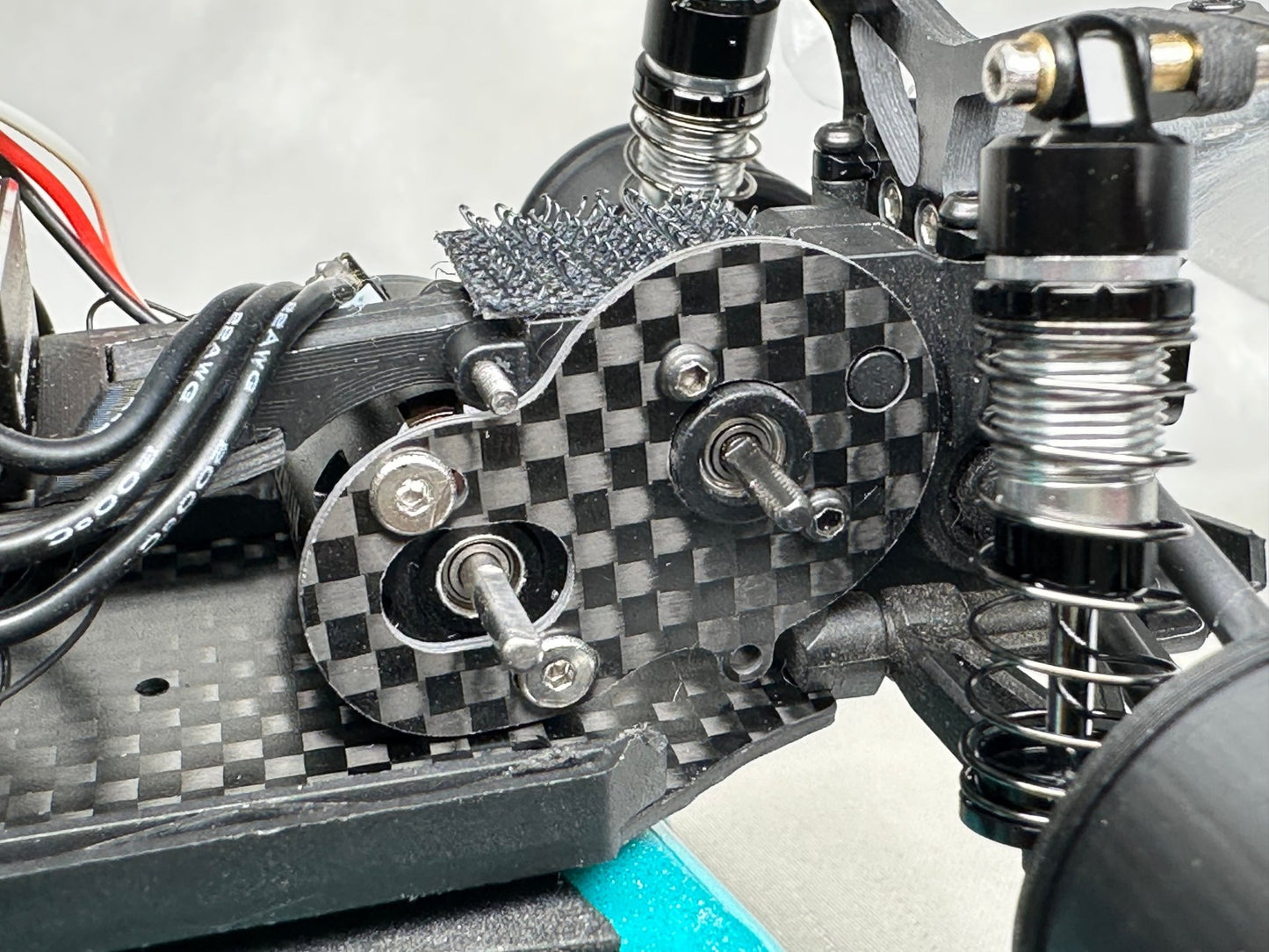

This is a carbon fiber version of the original titanium motor plate for Micro Bs, it’s gone through extensive testing up to this date.

WST Ultra flat motor screws and WST Gearcovers are highly recommended. It is much easier than trying to modify the stock gear cover.

Includes:

• Qty. 1 - Carbon Fiber Motor Plate


Details:

Weight: 0.7g (Stock: 1.0g)

What Motors Work?

Below is a list of motors that will fit, many more will fit as well.

Sensored Motor Examples:

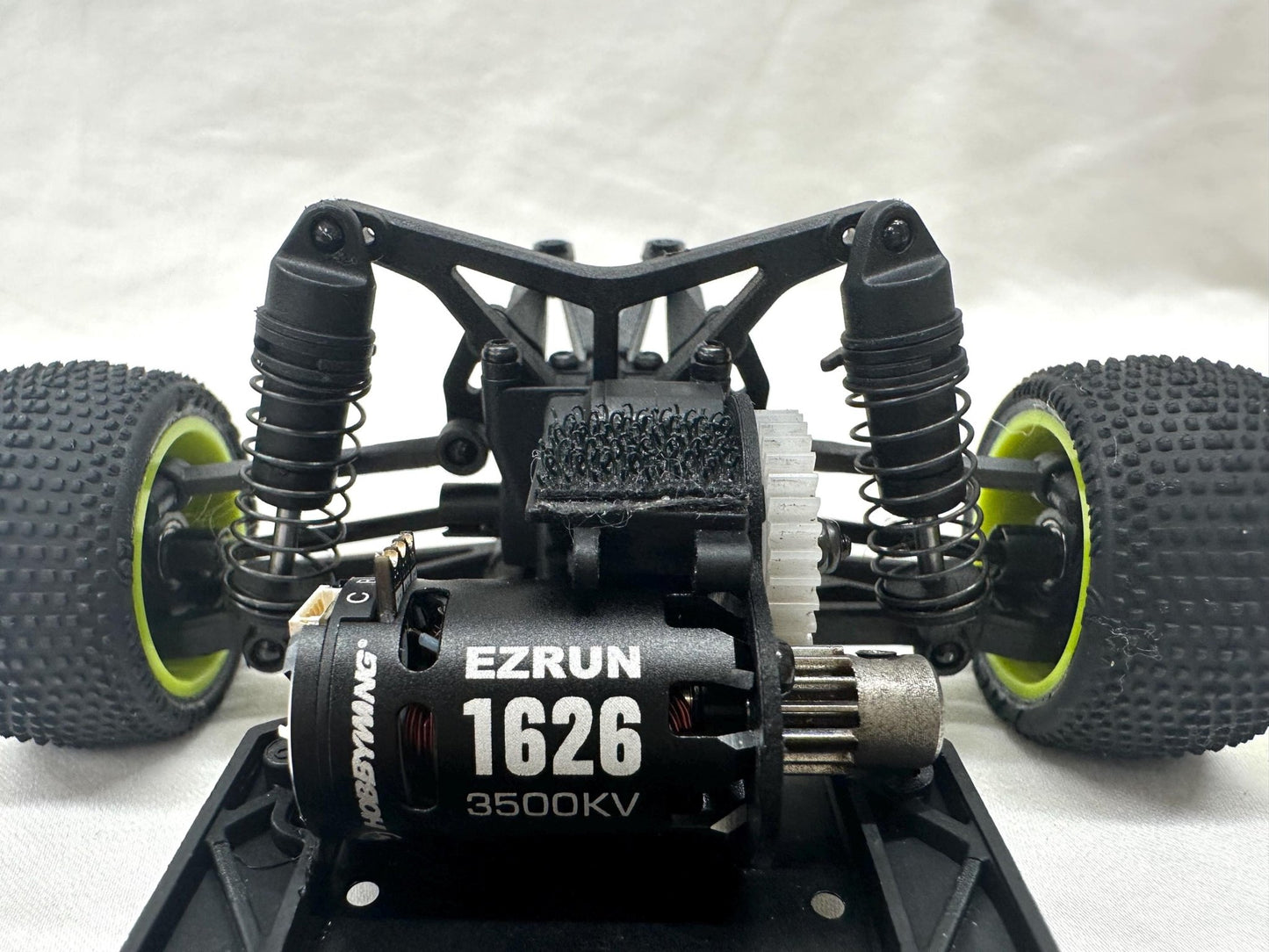

• Hobbywing 1626 (Shown, Personal Favorite)
• Furitek Hellfire 1410 (Shown)
• GL Racing
• PN Racing V4 Anima
• Rocket-RC 1525

Sensorless Motors Examples:

• Furitek Greyhound 1410
• Rocket-RC (Amazon, Least Expensive Choice)

NOTES:

• I have tested various motors up to 16mm in Diameter and 26mm in Length. The motor mounting screws are designed for 12mm diameter bolt patterns.
• Depending on your pinion size and motor size, there may be slight trimming required on the factory plastic side rails.

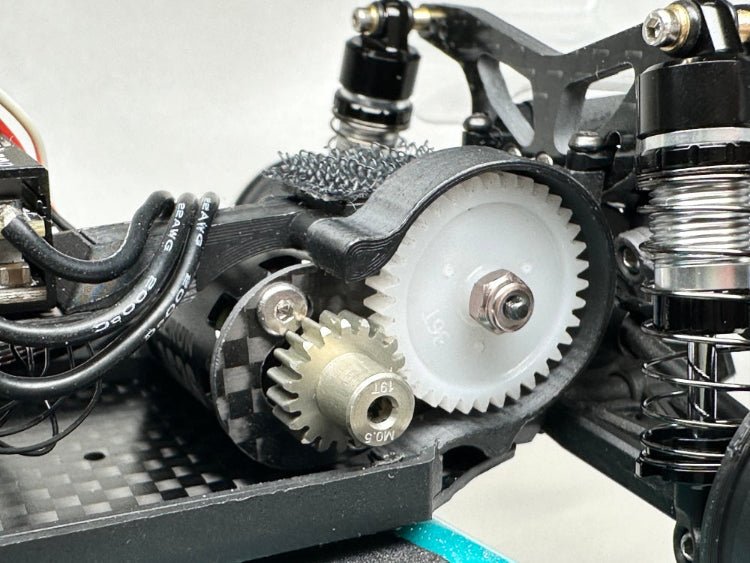

• Depending on your motor, you should be able to fit roughly a 14t to 20t pinion.
• Stock Motor WILL NOT fit

• Stock gear cover will need modifications for pinion clearance.

There is likely other motors that will fit. For a motor reference, a 3500kv with a 14t pinion is slightly faster than stock, but feels significantly better than stock. 4700kv with a 17t pinion, is really fast :). I personally like the 4000kv Hobbywing with a 14t pinion, you can turn up the timing in your ESC for more RPM.

Some ESCs if running Sensored may need to be programmed to have the motor direction reversed.

Pinions:
14T - Robinson Racing Products - RRP1814
15T - Robinson Racing Products - RRP1815
16T - Robinson Racing Products - RRP1816
17T - Robinson Racing Products - RRP1817
