Servo Mount - Losi Micro-B - Designed for AGF RC A06CLS/Pn Racing V3 Anima/3flow9rc Cascade Micro Servos

This servo mount is designed for the Micro servos such as the 3flow9rc Cascade Micro or the AGF-RC A06CLS. It is designed to work with the factory top deck. The mount uses all factory hardware. It is 3D Printed, there are a few material options, but PLA is perfectly good for this mount.

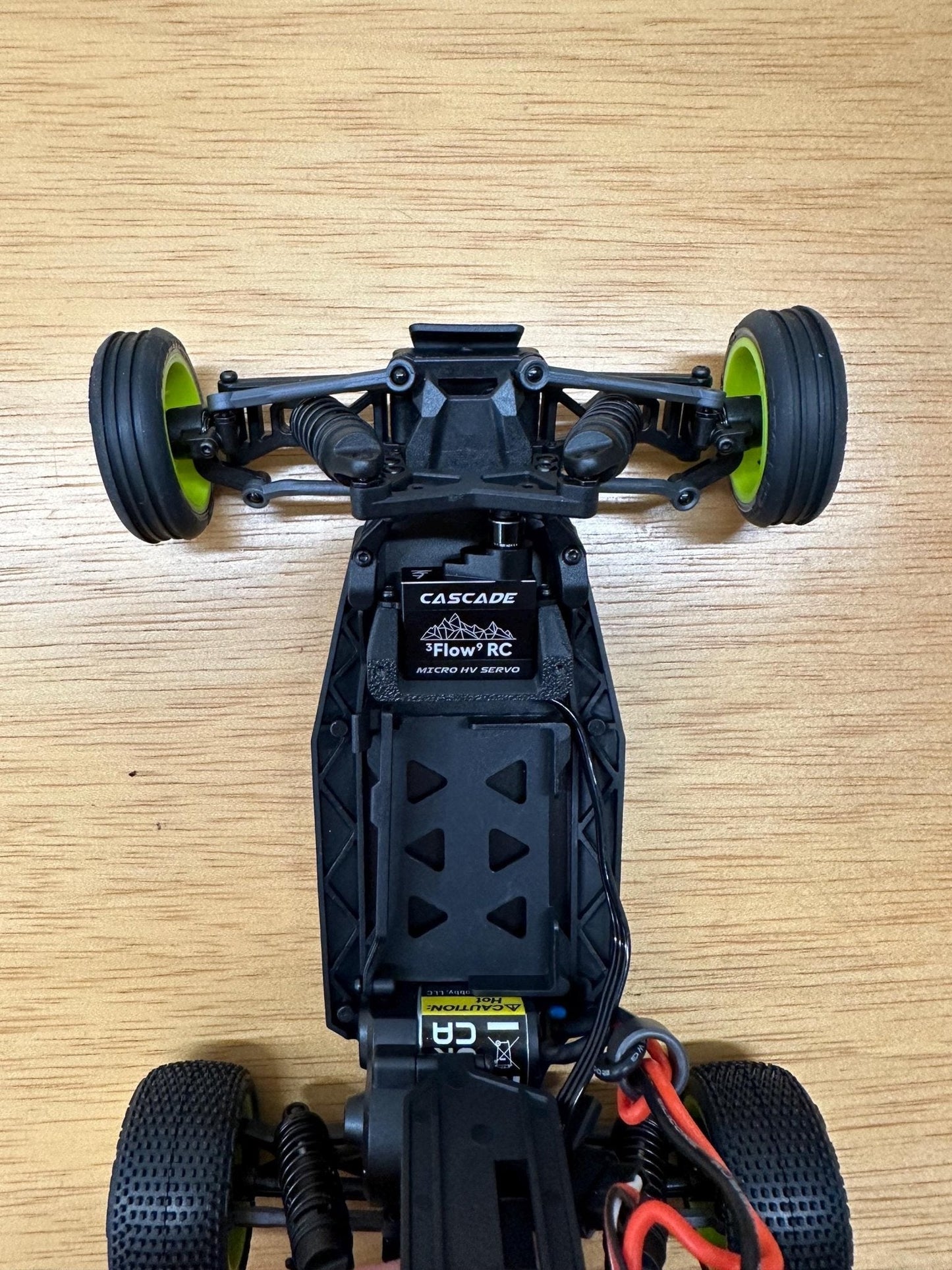

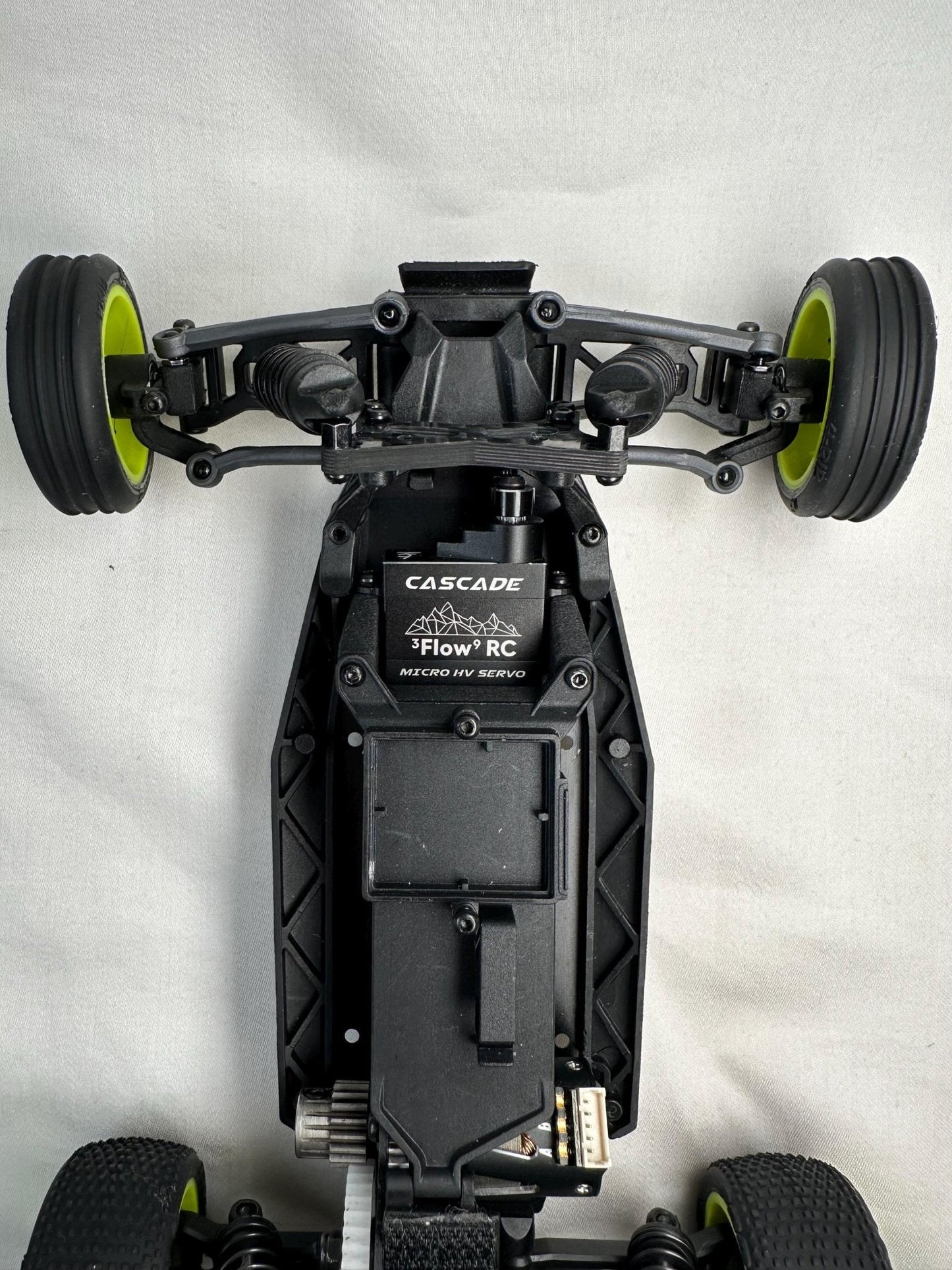

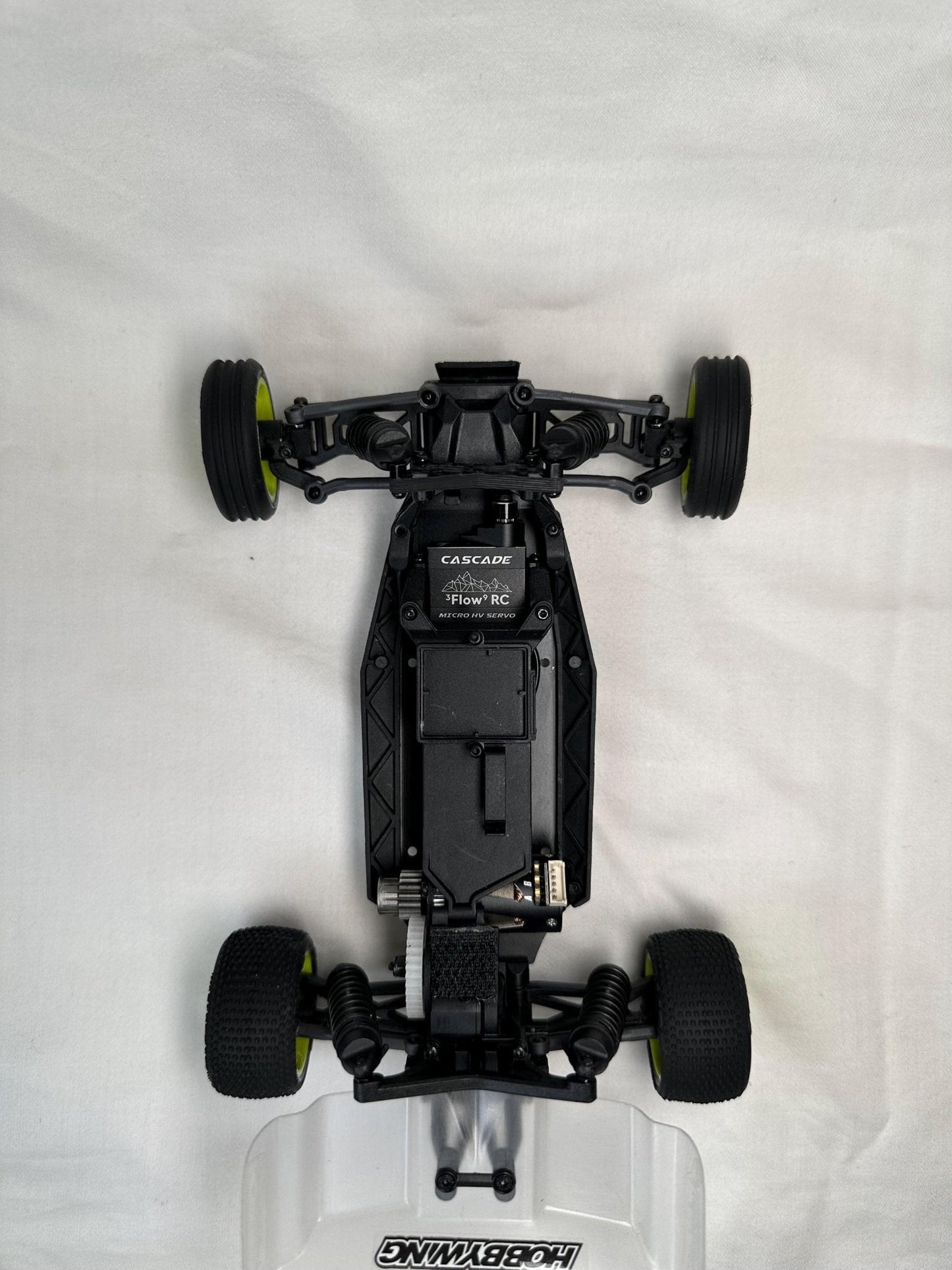

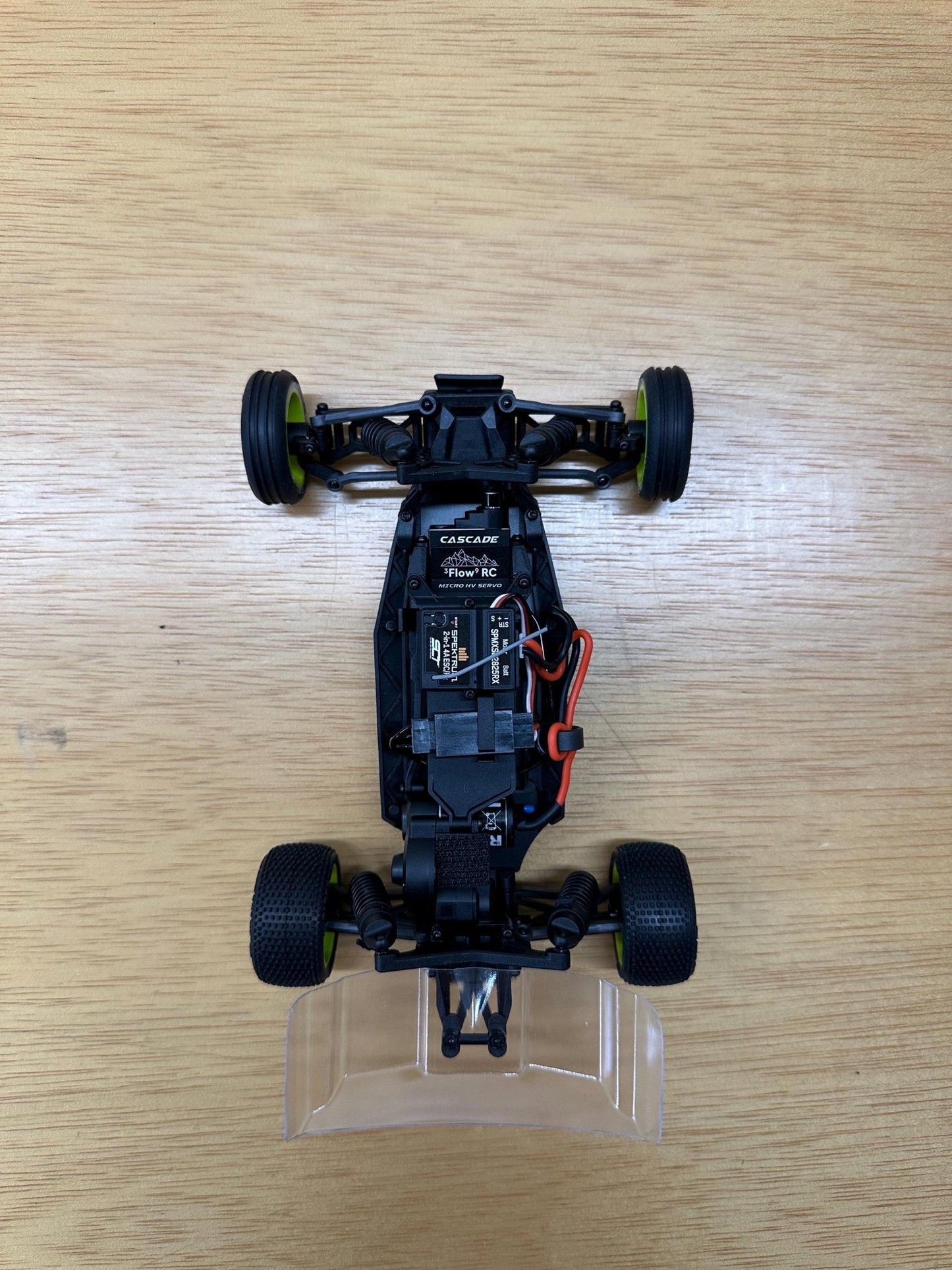

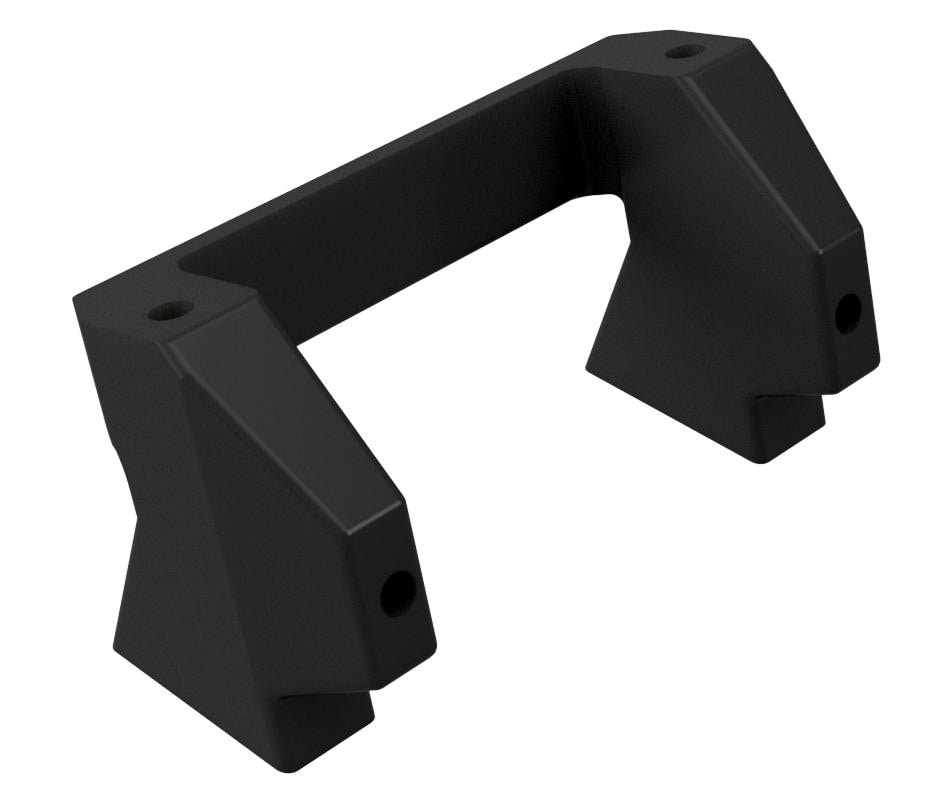

As of 11/5 - V2 of this mount will ship. The Cross Brace is moved to underneath the servo. Images will be added soonish. Part shown in YELLOW in the rendering. It retains nearly all factory geometry. The servo will be shifted a few millimeters towards the front of the car. This helps bring the CG forward to balance out the car along with giving valuable space on the chassis for electronics.

If using the stock transmitter, make sure to set your steering end points using the manual; https://fcc.report/FCC-ID/BRWSPMSLT200F/5594527.pdf

Links For the Compatible/Ideal Parts:

Servo Horns:

• Option 1: Plastic Horn that comes with servo. (Use a hole around 6.5-8.5mm). You can use longer if you want more throw.

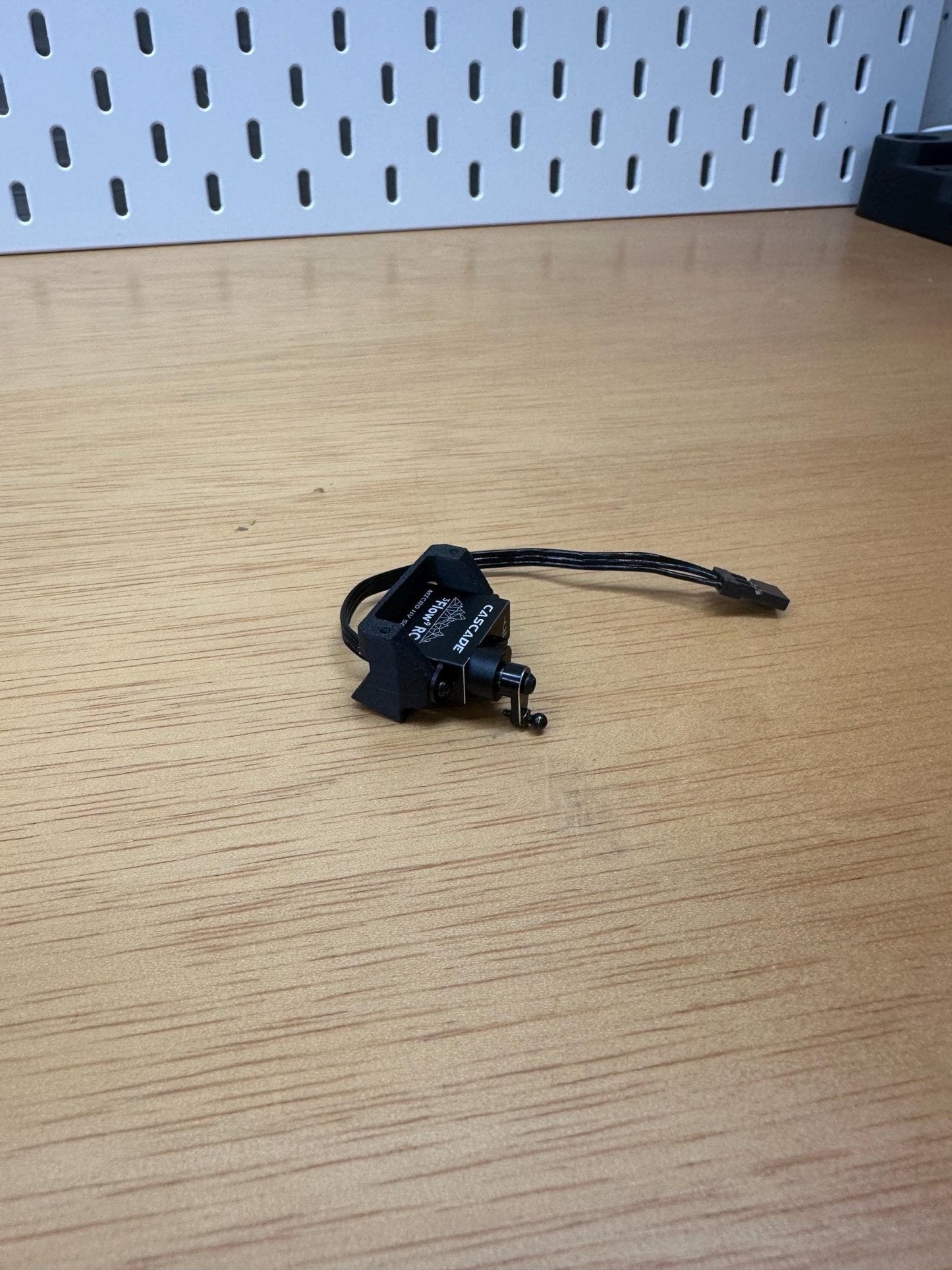

• Option 2: AGF-RC HPS065 (Link: https://a.co/d/9ndaCTV) Note: the horn is 1.4mm, so the ball stud threads perfectly. Servos: 3flow9rc - Cascade Micro (Link: https://3flow9rc.com/products/cascade-micro-hv-servo) This Cascade Micro is the same servo as the A06CLS.

For factory geometry you can use the stock horn, if you want an aluminum horn, then the horn from Amazon that is linked above.

If you want to use the 3flo9rc Cascade Servo Horn, they have a servo mount that is designed for the 10mm hole to hole spacing, https://3flow9rc.com/products/cascade-servo-mount-for-losi-micro-b?_pos=2&_sid=518f6963e&_ss=r

AGF-RC - A06CLS (Link: https://www.agf-rc.com/0052sec-30KG-20T-15T-Micro-Programmable-Coreless-Digital-RC-Servo-JSTJR-Plug-for-Mini-Z-Car-A06CLS-V2-p4403425.html) Note: The important thing is to select the JR servo connector.

The same servo from amazon has the wrong connector., however the amazon one should have an adaptor from JST to JR. Servo horn packaged with Servo will work. PN Racing - V3 ANIMA The servo chosen is one of the few servos that will fit in this chassis. I believe it may be the only one that has a servo horn that is perfect length and has a M1.4 thread for the ball stud. Hole to Hole spacing is 23.8mm if you want to find another servo. A lot of Mini-Z servos are roughly the right dimensions.
